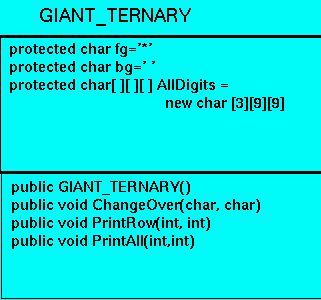

Figure 3.1: GIANT_TERNARY Class Definition.
In the previous lecture, reference was made to a natural setting in which multi-dimensional arrays have potential uses. In this lecture we develop an application program illustrating this particular setting.
Recall that two drawbacks of encoding characters as sequences of String instances were mentioned:
The example to be developed presently will address both of these points. First we consider the definition of a class any instance of which will hold representations of the three digits 0, 1 and 2 stored within a 2-dimensional char array. This class will contain Instance Methods to
We then describe how this class can be used within a program that converts a given input (non-negative) integer into a ternary representation and prints out this representation using the GIANT_TERNARY class proceeding from left to right.
Figure 3.1 below shows the Class Diagram for the GIANT_TERNARY class that will be defined.
|
|
An instance of GIANT_TERNARY has 3 instance variables: the char types fg and bg hold, respectively, the symbols that are to be used as foreground and background printing symbols when displaying one of the three digits - 0, 1, or 2 - in its giant printing form. The actual representation of these three digits is stored in the 3-dimensional char array AllDigits. Recalling the viewpoint of a 3-dimensional array as an simple array of 2-dimensional array, described in the last lecture, the three component (2-dimensional) arrays
The single constructor for the class instantiates all 3 of these 9-by-9 grids to contain the default encoding of the giant digit.
The Java realisation of the constructor is shown below
The three instance methods perform the following functions:
When invoked this method replaces all of the occurrences of the current foreground symbol (fg) used
in representing digits with the character stored in fore and, similarly all occurrences
of the current background symbol (bg) with the character indicated by back. These
functions are simply carried out by a nested for loop construction:
The parameter ternary_digit indicates which of the 2-dimensional arrays
AllDigits[0], AllDigits[1], or AllDigits[2] is to be used for
the output. The parameter row_value references one of the 1-dimensional char
arrays within AllDigits[ternary_digit], namely AllDigits[ternary_digit][row_value].
This array is then output, no line break occurring after the output is completed.
This instance method outputs the representation of the value in ternary_digit as
stored in the 2-dimensional char array AllDigits[ternary_digit].
The method just invokes the PrintRow method for each of the 9 rows, outputting a newline after each row.
The complete Class implementation is given in Figure 3.6:
We develop a Java program that solves the following:
Given user-supplied foreground and background symbols to be used in printing,
and a non-negative integer, n, say, output
the ternary representation of of n using a 9-by-9 depiction composed
of the foreground and background symbols for each digit. The output should be
such that the ternary value of n is printed from left to right, i.e. in
imitation of the `normal' method of printing numerical values.
Reminder: You will be familiar, by now, with the
concept of representing a non-negative integer value using binary (or
base 2), octal (base 8) and
hexadecimal (base 16), cf.
COMP103.
Obviously, such systems can be defined to encompass representing integer values
with respect to any base integer. The ternary number
system is that which uses the number 3 as its base, so that only the digits
0, 1, 2 are employed and successive digits (moving from right-to-left)
indicate the contribution to the value of increasing powers of three, e.g.
the integer values 1,3,9,27,81 are written in ternary as 1,10,100,1000,10000;
the integer value 73 is written in ternary as 2201 since
We can view the solution program as involving the stages below:
Assuming that the relevant input stream has been configured and that
the two characters required are to be held in variables identified as fore
and back respectively, accomplishing the first part could be
carried out by by prompting the user for the required information, and
then taking the first character of the String input
as its value, i.e.
`Naive' Input Harness for Foreground and Background Data
The main drawback of this approach, however, is that if the user simply hits the < return>
in reply then a run-time error will result since the String input_line
will contain no characters (and will not have a `first' character). Of course it is trivial
to test for this, and rather than iterate until a non-empty String is supplied,
we can use such a response as indicating that the default setting be used. So, the input
mechanism now becomes,
Improved Input Harness for Foreground and Background Data
For the second part we use the instance method
provided by the GIANT_TERNARY Class. Since this is an instance
method a variable of the appropriate type must be instantiated. Hence,
The final item of input is the integer value to be printed in ternary. This will
be held in an int InputValue. No data validation, i.e. a test
that this value is non-negative is performed. Following the instantiation of the
GIANT_TERNARY Object, the required value is obtained using
The remaining stages - (4) and (5) - constitute the bulk of the processing that is required
of the application.
Consider the first of these - converting the integer value stored in InputValue to
an equivalent ternary representation. We have to consider,
Since, when the final output stage is being performed, it will be necessary
to access each digit in the ternary representation repeatedly (in order to meet the
requirement that the GIANT_TERNARY encoding is printed from left to right)
we can choose between an `explicit' array representation or
use a String each element of which will be one of the characters
0, 1, or 2,
Neither the storage of single digits in the String form nor the determination of the correct 2-dimensional
form to access when printing a giant digit, can be carried out directly: the some translation
from a character to an (integer) index has to be made.
It is clear that the gains made in one form of representation translate into problems in the
alternative form. As is often the case in program development, neither choice is self-evidently `correct'
or `incorrect'.
We choose to develop our solution in terms of storing the ternary
representation using Strings, mainly to avoid certain opacities that
arise in the dealing with the alternative form. Thus,
will be the variable used to hold the ternary representation of InputValue.
Turning to the actual conversion process, this is handled by a method
The realisation of this is given below:
Figure 3.7 Method converting integer value (n) to String of ternary digits
The final stage is the actual output of the data in TernaryValue as a sequence
of GIANT_TERNARY templates.
This is carried out within the main() method.
Recall that the GIANT_TERNARY class provides an Instance method
that outputs a single specified row of the 9-by-9 matrix of a given digit encoding without
throwing a line-break after printing. Using this method, all that needs to be
done is
i.e.
Figure 3.8: Main Output Stage
The complete implementation is given in Figure 3.9:
Figure 3.9 Printing GIANT_TERNARY Digits
The alternative representation, using int[] rather than
String can be found here.
a) Black Box Testing
Limit Tests
The cases we have to consider here are: the three possible combinations of at least one
foreground/background symbol being the default; and cases when an integer value of 0 is to be
printed. The table summarises the expected output for such cases.
public class GIANT_TERNARY()
{
//
// This probably looks a bit meaningless, but is easiest
// mechanism for instantiating a default setting.
//
// Using fg='*' and bg=' ', the appearance encoded
// is:
//
// *** *** *****
// ***** * ** ** **
// ** ** * ** ** **
// ** ** ** ** **
// ** ** ** **
// ** ** ** **
// ** ** ** **
// ***** ******* ******
// *** ******* *******
//
// N.B. Layout convention which allows easy checking
// that all elements of the 3-dimensional array have
// been accounted for.
//
final char[][][] TempDigits = {
{ {bg,bg,bg,fg,fg,fg,bg,bg,bg},
{bg,bg,fg,fg,fg,fg,fg,bg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,bg,fg,fg,fg,fg,fg,bg,bg},
{bg,bg,bg,fg,fg,fg,bg,bg,bg}
},
{ {bg,bg,bg,fg,fg,fg,bg,bg,bg},
{bg,bg,fg,bg,fg,fg,bg,bg,bg},
{bg,fg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,fg,fg,fg,fg,fg,fg,fg,bg},
{bg,fg,fg,fg,fg,fg,fg,fg,bg}
},
{ {bg,bg,fg,fg,fg,fg,fg,bg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,bg,bg,bg,bg,fg,fg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,fg,fg,bg,bg,bg,bg},
{bg,bg,fg,fg,fg,fg,fg,fg,bg},
{bg,fg,fg,fg,fg,fg,fg,fg,bg}
}
};
// Now instantiate the appropriate field for the class;
AllDigits = TempDigits;
}
Figure 3.2: Default Constructor for GIANT_TERNARY Class
//**********************************************************
// Change the representation used by default, to employ *
// the specified foreground symbol (fore) and background *
// symbol (back). *
//**********************************************************
public void ChangeOver (char fore, char back)
{
for (int i=0; i<3; i++)
for (int j=0; j<9; j++)
for (int k=0; k<9; k++)
if (AllDigits[i][j][k]==fg)
AllDigits[i][j][k]=fore;
else
AllDigits[i][j][k]=back;
fg=fore; bg=back;
}
Figure 3.3: Instance method to alter default representation.
//
// Given a digit (0,1, or 2), output the
// specified row (in row_value) of its
// representation as a String, without a new line being thrown
// after printing.
//
public void PrintRow( int row_value, int ternary_digit )
{
System.out.print(String.valueOf(AllDigits[ternary_digit][row_value]));
}
Figure 3.4: Instance method to print a single row of a digit.
//
// Print out the representation of a ternary digit.
//
public void PrintAll (int ternary_digit )
{
for (int i=0; i<9; i++)
{
PrintRow(i,ternary_digit); System.out.println();
};
}
Figure 3.5: Instance Method to print an entire digit.
//
// COMP102
// Example 3: Constrained Multi-dimensional Array
// Storing and Printing Giant Digits
//
// Paul E. Dunne 12/10/1999
//
public class GIANT_TERNARY
{
//
// Fields
//
protected char fg='*'; // Default Foreground Symbol
protected char bg=' '; // Default Background Symbol
protected char[][][] AllDigits= new char[3][9][9]; // Representation
//
// Single Constructor
//
public GIANT_TERNARY()
{
//
// This probably looks a bit meaningless, but is easiest
// mechanism for instantiating a default setting.
//
// Using fg='*' and bg=' ', the appearance encoded
// is:
//
// *** *** *****
// ***** * ** ** **
// ** ** * ** ** **
// ** ** ** ** **
// ** ** ** **
// ** ** ** **
// ** ** ** **
// ***** ******* ******
// *** ******* *******
//
//
//
// N.B. Layout convention which allows easy checking
// that all elements of the 3-dimensional array have
// been accounted for.
//
final char[][][] TempDigits = {
{ {bg,bg,bg,fg,fg,fg,bg,bg,bg},
{bg,bg,fg,fg,fg,fg,fg,bg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,bg,fg,fg,fg,fg,fg,bg,bg},
{bg,bg,bg,fg,fg,fg,bg,bg,bg}
},
{ {bg,bg,bg,fg,fg,fg,bg,bg,bg},
{bg,bg,fg,bg,fg,fg,bg,bg,bg},
{bg,fg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,fg,fg,fg,fg,fg,fg,fg,bg},
{bg,fg,fg,fg,fg,fg,fg,fg,bg}
},
{ {bg,bg,fg,fg,fg,fg,fg,bg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,fg,fg,bg,bg,bg,fg,fg,bg},
{bg,bg,bg,bg,bg,fg,fg,bg,bg},
{bg,bg,bg,bg,fg,fg,bg,bg,bg},
{bg,bg,bg,fg,fg,bg,bg,bg,bg},
{bg,bg,fg,fg,fg,fg,fg,fg,bg},
{bg,fg,fg,fg,fg,fg,fg,fg,bg}
}
};
// Now instantiate the appropriate field for the class;
AllDigits = TempDigits;
}
//**********************************************************
// Instance Methods *
//**********************************************************
//
// Change the representation used by default, to employ
// the specified foreground symbol (fore) and background
// symbol (back).
//
public void ChangeOver (char fore, char back)
{
for (int i=0; i<3; i++)
for (int j=0; j<9; j++)
for (int k=0; k<9; k++)
if (AllDigits[i][j][k]==fg)
AllDigits[i][j][k]=fore;
else
AllDigits[i][j][k]=back;
fg=fore; bg=back;
}
//
// Given a digit (0,1, or 2), output the
// specified row (in row_value) of its
// representation as a String, without a new line being thrown
// after printing.
//
public void PrintRow( int row_value, int ternary_digit )
{
System.out.print(String.valueOf(AllDigits[ternary_digit][row_value]));
} // PrintRow
//
// Print out the representation of a ternary digit.
//
public void PrintAll (int ternary_digit )
{
for (int i=0; i<9; i++)
{
PrintRow(i,ternary_digit); System.out.println();
};
}
}
Figure 3.6 Implementation of the Class GIANT_TERNARY
3. An Application using the GIANT_TERNARY Class
3.1. Requirements
73 = 2*33 + 2*32 + 0*31 + 1*30 = 2*27 + 2*9 + 0 + 1 3.1. Analysis
public static void Get_fore_and_back() throws IOException
{
String input_line;
System.out.print("Foreground Character:");
fore = input_line.charAt(0);
System.out.print("Background Character:");
back = input_line.charAt(0);
}
public static void Get_fore_and_back() throws IOException
{
String input_line;
System.out.print("Foreground Character (hit return for default value):");
input_line = keyboardInput.readLine();
if (input_line.length()==0) // Empty String read: use default.
{
fore='*';
}
else
{
fore = input_line.charAt(0);
};
System.out.print("Background Character (hit return for default value):");
if (input_line.length()==0) // Empty String read: use default.
{
back=' ';
}
else
{
back = input_line.charAt(0);
};
}
ChangeOver(char,char)
static GIANT_TERNARY NumberForm=new GIANT_TERNARY();
static char fore; // For user-defined foreground symbol
static char back; // For user-defined background symbol
...
public static void main( String[] args ) throws IOException
{
Get_fore_and_back();
NumberForm.ChangeOver(fore,back); // Modify the instantiation to
// use the new foreground/background
// symbols.
}
System.out.print("Enter non-negative integer value:");
InputValue = new Integer(keyboardInput.readLine()).intValue();
Advantages of using an `explicit' array
Disadvantages of using an `explicit' array
elements suffice (this value being rounded-up to the nearest integer).
Advantages of using a String
Disadvantage of using a String
public static String IntegerToTernary( final int n )
//*************************************************************
// Convert integer to ternary representation returning String *
// of the encoding digits as the result. *
//*************************************************************
public static String IntegerToTernary( final int n )
{
String res = new String();
int tn = n; // Save value of input parameter.
int next_digit; // The next ternary digit to be stored in res.
if (tn==0) // Can convert 0 immediately.
{
res= "0"+res;
}
else
{
while (tn> 0)
{
next_digit = tn%3; // Find the least significant ternary digit left;
tn=tn/3; // and `shift' this off the current value of tn.
//
// Append the correct symbol to the result String.
// We could do this directly (i.e. avoiding case statement)
// by using an integer-character encoding, however, this
// assumes a specific encoding scheme (ASCII say) and
//is a bit opaque.
//
switch(next_digit)
{
case 0: res = "0"+res; break;
case 1: res = "1"+res; break;
case 2: res = "2"+res;
};
};
};
return res;
}
print a new_line Print the first row of each digit in TernaryValue print a new_line Print the second row of each digit in TernaryValue print a new_line Print the third row of each digit in TernaryValue print a new_line .... Print the last row of each digit in TernaryValue print a new_line
//
// Output Stage
//
// Proceeding from left-to-right output
// the current (i'th) row of the GIANT_TERNARY digit
// corresponding to each digit in the ternary representation
// of the integer InputValue
//
System.out.println(); // Start printing on a new line.
for (int i=0; i< 9; i++)
{
for (int j=0; j<TernaryValue.length(); j++)
{
//
// As with IntegerToTernary conversion, the case
// statement could be replaced by a direct calculation.
//
switch(TernaryValue.charAt(j))
{
case '0': NumberForm.PrintRow(i,0); break;
case '1': NumberForm.PrintRow(i,1); break;
case '2': NumberForm.PrintRow(i,2);
};
};
System.out.println(); // Throw a new line after one row completed.
};
//
// COMP102
// Example 4: Printing GIANT_TERNARY representation
//
// Paul E. Dunne 13/10/99
//
import java.io.*;
import GIANT_TERNARY; // Ternary Digit Class
//
public class GiantTernaryOut
{
// Instantiate Input streams
public static InputStreamReader input = new InputStreamReader(System.in);
public static BufferedReader keyboardInput = new BufferedReader(input);
//
static GIANT_TERNARY NumberForm=new GIANT_TERNARY();
static char fore; // For user-defined foreground symbol
static char back; // For user-defined background symbol
static int InputValue; // User supplied integer to be printed in ternary
// using GIANT_TERNARY representation.
static String TernaryValue; // This will contain the ternary value of InputValue
// as a String of {0,1,2} symbols.
//***************************************************************
// Read user-defined foreground and background *
// symbols. *
//***************************************************************
public static void Get_fore_and_back() throws IOException
{
String input_line;
System.out.print("Foreground Character (hit return for default value):");
input_line = keyboardInput.readLine();
if (input_line.length()==0) // Empty String read: use default.
{
fore='*';
}
else
{
fore = input_line.charAt(0); // otherwise take first character.
};
System.out.print("Background Character (hit return for default value):");
input_line = keyboardInput.readLine();
if (input_line.length()==0) // Empty String read: use default.
{
back=' ';
}
else
{
back = input_line.charAt(0); // otherwise take first character.
};
} // Get_fore_and_back
//*************************************************************
// Convert integer to ternary representation returning String *
// of the encoding digits as the result. *
//*************************************************************
public static String IntegerToTernary( final int n )
{
String res = new String();
int tn = n; // Save value of input parameter.
int next_digit; // The next ternary digit to be stored in res.
if (tn==0) // Can convert 0 immediately.
{
res= "0"+res;
}
else
{
while (tn> 0)
{
next_digit = tn%3; // Find the least significant ternary digit left;
tn=tn/3; // and `shift' this off the current value of tn.
//
// Append the correct symbol to the result String.
// We could do this directly (i.e. avoiding case statement)
// by using an integer-character encoding, however, this
// assumes a specific encoding scheme (ASCII say) and
//is a bit opaque.
//
switch(next_digit)
{
case 0: res = "0"+res; break;
case 1: res = "1"+res; break;
case 2: res = "2"+res;
};
};
};
return res;
} // IntegerToTernary
//
// Main Method
//
public static void main( String[] args ) throws IOException
{
Get_fore_and_back();
NumberForm.ChangeOver(fore,back); // Modify the instantiation to
// use the new foreground/background
// symbols.
System.out.print("Enter non-negative integer value:");
InputValue = new Integer(keyboardInput.readLine()).intValue();
TernaryValue = IntegerToTernary(InputValue);
//
// Output Stage
//
// Proceeding from left-to-right output
// the current (i'th) row of the GIANT_TERNARY digit
// corresponding to each digit in the ternary representation
// of the integer InputValue
//
System.out.println(); // Start printing on newline.
for (int i=0; i< 9; i++)
{
for (int j=0; j<TernaryValue.length(); j++)
{
//
// As with IntegerToTernary conversion, the case
// statement could be replaced by a direct calculation.
//
switch(TernaryValue.charAt(j))
{
case '0': NumberForm.PrintRow(i,0); break;
case '1': NumberForm.PrintRow(i,1); break;
case '2': NumberForm.PrintRow(i,2);
};
};
System.out.println(); // Throw a new line after one row completed.
};
} // main
}
3.2. Testing
| Response to foreground symbol prompt | Response to background symbol prompt | Expected output on integer 0 |
| < Return > | < Return > |
*** ***** ** ** ** ** ** ** ** ** ** ** ***** *** |
| < Return > | . |
...***... ..*****.. .**...**. .**...**. .**...**. .**...**. .**...**. ..*****.. ...***... |
| @ | < Return > |
@@@ @@@@@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@@@@ @@@ |
b) White Box Testing
Path Testing
The only paths that have not been tested through Limit value testing are those concerned with ensuring that all of the possible ternary digits are stored and printed in the correct fashion. We can test for these simply by supplying as an input positive integer, one whose ternary representation requires the use of all 3 digits, e.g. 11 whose ternary form is 102. We should also test (given one of the reasons for using String as the data type in which to store a ternary value) that leading 0s are not output. Any positive integer, however, which is not of the form
will be suitable, and since the ternary form of such numbers involves only the digits 1 and 0 (in the former case) or 2 and 0 (in the latter), it follows that any integer value involving all three digits in its ternary form will provide a suitable test case.
| Foreground | Background | Input Integer | Expected output |
| # | , | 11 |
,,,###,,,,,,###,,,,,#####,, ,,#,##,,,,,#####,,,##,,,##, ,#,,##,,,,##,,,##,,##,,,##, ,,,,##,,,,##,,,##,,##,,,##, ,,,,##,,,,##,,,##,,,,,,##,, ,,,,##,,,,##,,,##,,,,,##,,, ,,,,##,,,,##,,,##,,,,##,,,, ,#######,,,#####,,,,######, ,#######,,,,###,,,,#######, |
The constrained multi-dimensional array used in the example application developed here, illustrates several of the points referred to in the previous lecture:
